Our forestry equipment

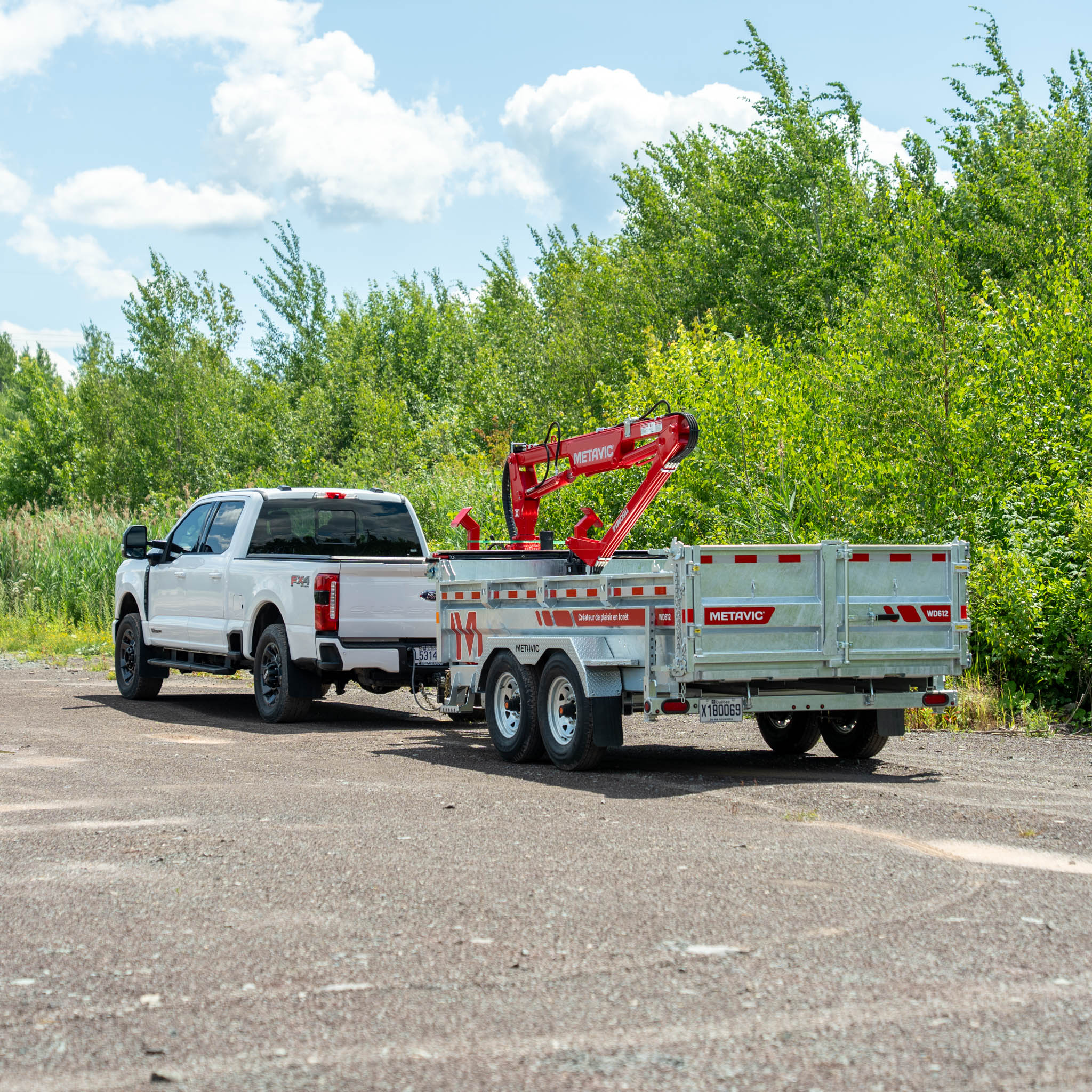

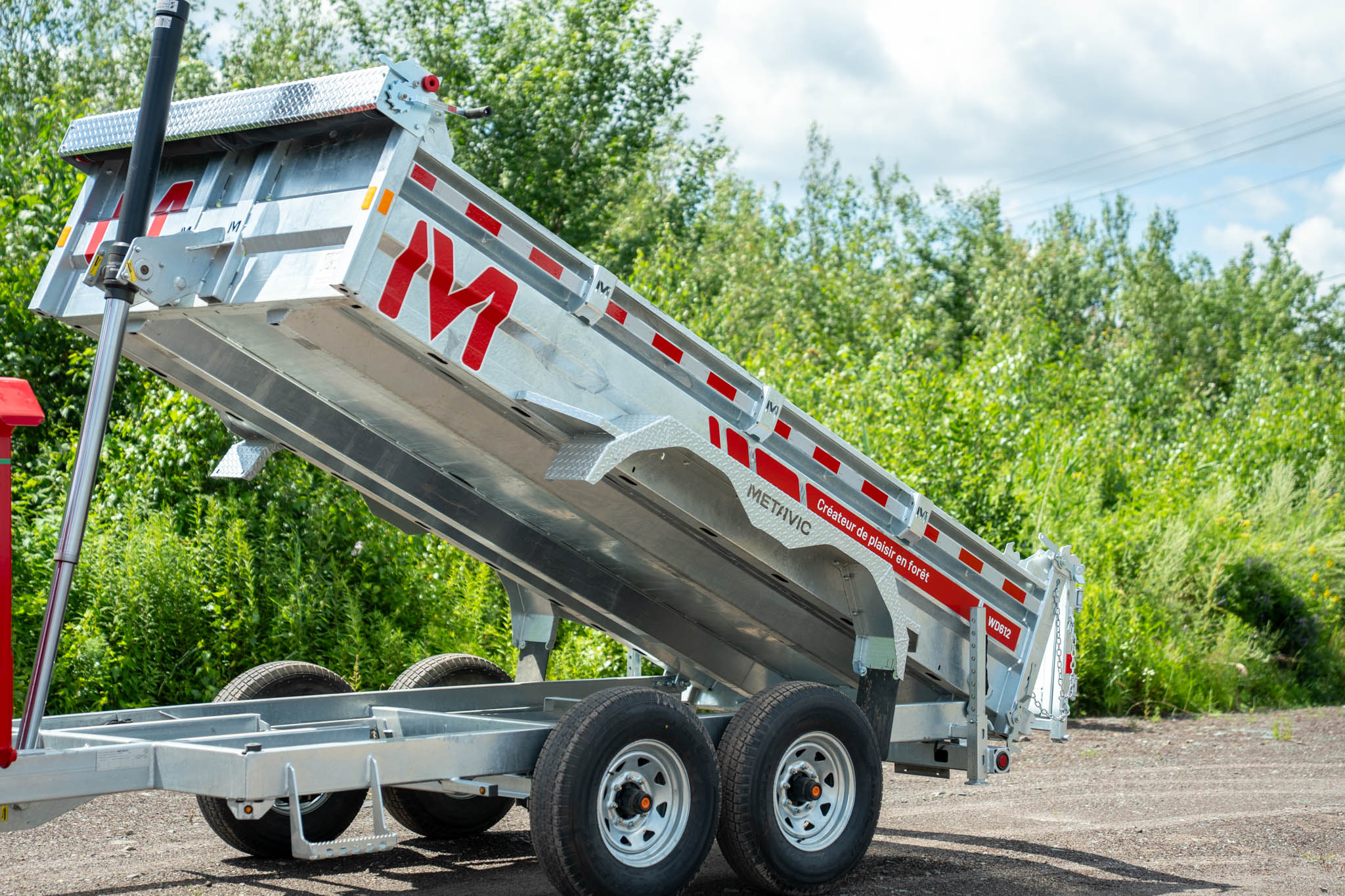

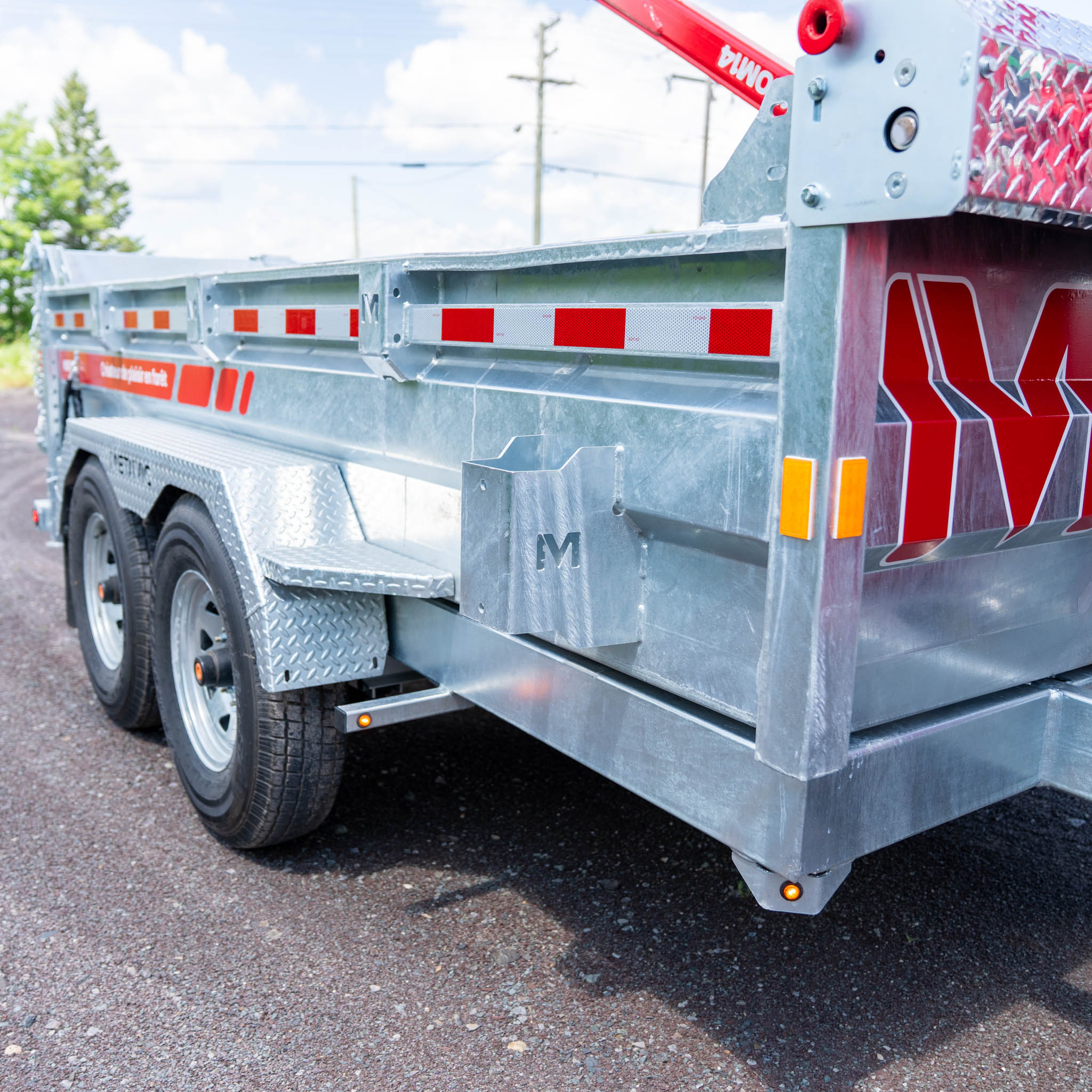

WD612 dump trailer equipped with a log loader

Recommended for ½ to ¾-ton trucks

Starting at 32 470$

Recommended use

For owners of a half-ton truck.

Ideal for transporting logs, firewood, branches, soil, gravel, or other materials like stumps and wood chips.

Also suited for moving equipment such as tractors, ATVs, and more.

Recommended load

Logs up to 12’

Trailer features:

  • One-piece box with 3/16” floor
  • Balanced axles to support the weight of the loader
  • Three-way rear door set
  • Tie-down bar
  • Side pockets
  • Bolt-on fenders
  • Stabilizer jacks
  • Tarp with roller
  • Spare tire mount

This rugged trailer is specially designed to accommodate a log loader. Well-balanced to prevent excessive weight on the tongue.

All our boxes are 4” over-length, which means an interior length of 12’-4”

Description

Strength, ruggedness and precision. For work loaded with pleasure.

All Metavic products, including our dump trailers, draw on the expertise we have built in the forest. The loader and dump trailer combination has been designed to achieve the perfect weight distribution on the tongue.

One-piece floor

The one-piece floor of our Metavic dump trailers offers a rugged, durable design built to withstand demanding work and repeated loading.

Bolt-on fenders

Bolt-on fenders make maintenance and replacement easy in case of damage, while keeping the trailer’s design practical and durable.

Tie-down bar

The tie-down bar provides several convenient anchor points to secure your load effectively during transport.

Spreading function

The spreading function of the rear panels lets you control the opening when unloading, making it easier to spread materials.

Fold-down tailgate

The tailgate folds all the way down to clear access to the dump box and create a convenient loading surface, ideal for moving equipment in and out.

Barn doors

The barn-door opening fully clears the rear of the trailer to make loading and unloading easier.

Balanced axles

On our trailers equipped with a log loader, axle placement is specifically engineered to better distribute the loader’s weight and achieve proper tongue weight, for better road handling.

Stabilizer jack

Stabilizer jacks give the trailer better stability during loading and unloading, especially when using the ramps.

Tarp with roller

The protective tarp with a bearing-mounted roller makes it easy to roll the tarp out and back up to cover your load quickly and effectively.

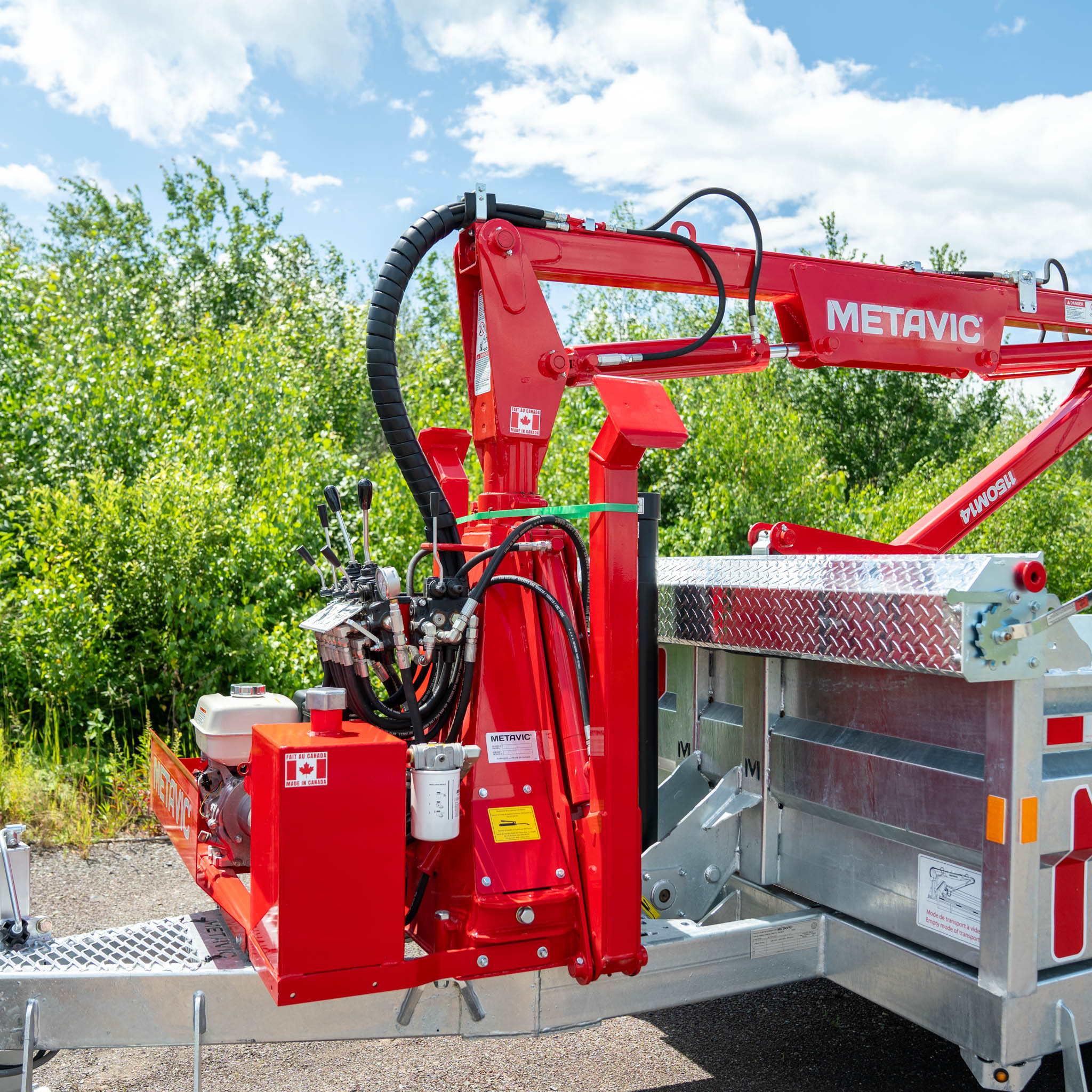

Operator station

The operator station with a step gives the operator convenient access and a comfortable position to carry out the various operations around the trailer.

See the product in action

Additional information

Suitable for

Recommended for ½ to ¾-ton trucks

Suitable for

A high-performance choice for contractors who need greater hauling capacity.

Level of use

DISCOVER ALL THE TECHNICAL SPECIFICATIONS
OF METAVIC LOG LOADERS WITH DUMP TRAILER

1150M14 / WD612
––– LOADER SPECIFICATIONS–––
Model 1150M14
Boom length 14 ft
Loader height 66 in
Loader width 40 in
Loader rotation 270°
Grapple rotation Continuous
Lifting capacity (full reach) 900 lb
Lifting capacity (half reach) 2 600 lb
Opening of the grapple 36 in
Closing of the grapple 4,5 in
Loader weight 1 200 lb
Honda Hydraulic power plant 9 HP
Hydraulic winch (optional) 4 000 lb
––– TRAILER SPECIFICATIONS–––
Model WD612
Overall length 240 in
Interior of the box 148 in x 72 in x 20 in
Front and rear height 26 in
Tires/rims ST235/85R16 12 ply
Axles 2 x 7 000 lb
Overall width 94 in
Cylinder force 7 tons
Cylinder stroke 108 in
Loading capacity 9 500 lb
Tongue weight 1 080 lb
Hitch 2 5/16 in or ring
Type of door Triple action
Trailer weight with loader 5 320 lb
Recommended truck 1/2 to 3/4 ton

Options

Spare tire

Add a spare tire with a built-in mount on the trailer so you are ready to get back on the road quickly after a flat.

Ramp kit

The ramp kit makes it easier to load and unload machinery and equipment directly into the trailer’s dump box.

Electric grapple

Built right into the lever, the electric grapple control makes opening and closing the grapple easier for simpler, more intuitive operation.

Lifting hook

The lifting hook provides a convenient attachment point for lifting and moving various loads with the loader. A simple option that makes the equipment more versatile on the job.

Photo coming soon: the actual image of this option will be added shortly.

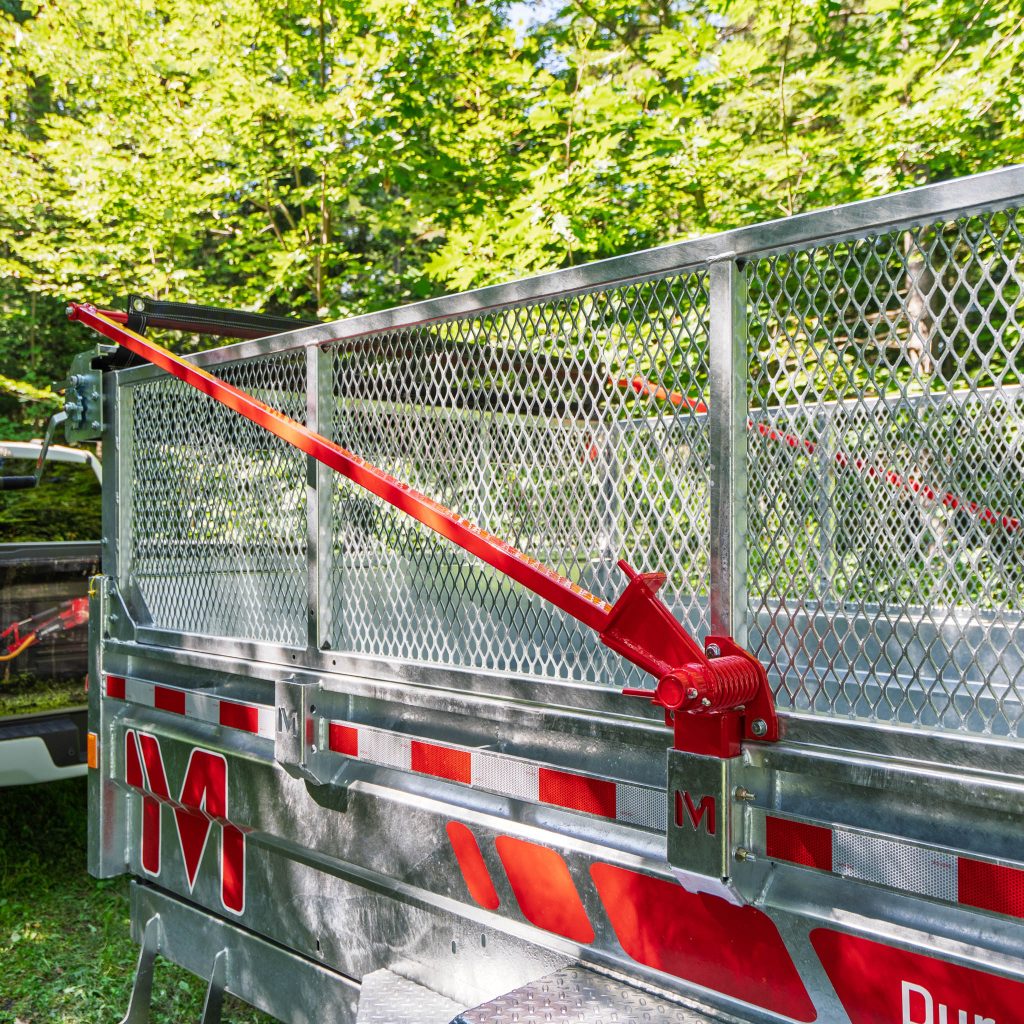

Side extension kit

The 24-inch side extensions increase the dump box’s loading volume, a practical option for hauling more bulky material.

Telescopic stabilizer

Telescopic stabilizers let you position the log loader and dump trailer closer to the materials or logs, a particularly practical advantage when working space is tight.

Dump trailer winch

Adding a winch lets you reach logs beyond the loader’s range and pull them closer to the trailer. A practical option that extends your working reach and improves access on the ground.

9 HP hydraulic power unit with electric start

The 9 HP hydraulic power unit with electric start provides an independent power source to run the loader, with quick and convenient starting.

Boom light

The light mounted on the boom improves visibility of the work area around the trailer and loader in low-light conditions.

Photo coming soon: the actual image of this option will be added shortly.
